Panduit lugs [LCDX450-38DH-6], PAE239

Name: Panduit lugs [LCDX450-38DH-6], PAE239
Brand: Panduit
SKU: PAE239
Availability: InStock

Mã kho: PAE239

Mã nhà sản xuất: LCDX450-38DH-6

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

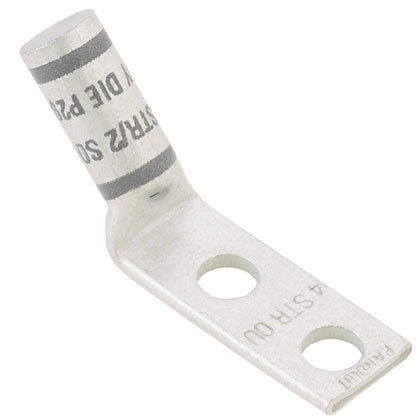

Two-hole, flex lug, 450 kcmil cable, 3/8 stud hole, 1 hole spacing, 45° angle tongue.

Product Type	Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.95
Stud Hole Size (mm)	9.5
Stud Hole Spacing (In.)	1
Stud Hole Spacing (mm)	25.4
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.4
Barrel Length (mm)	35.6
Tongue Type	Standard
Tongue Width (In.)	1.7
Tongue Width (mm)	43.2
Tongue Thickness (In.)	0.26
Tongue Thickness (mm)	6.6
Overall Length (In.)	3.75
Overall Length (mm)	95.3
Color Code	Brown
Panduit Die Index Number	P87
Burndy Die Index Number	20
Wire Strip Length (In.)	1.44
Wire Strip Length (mm)	37
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
