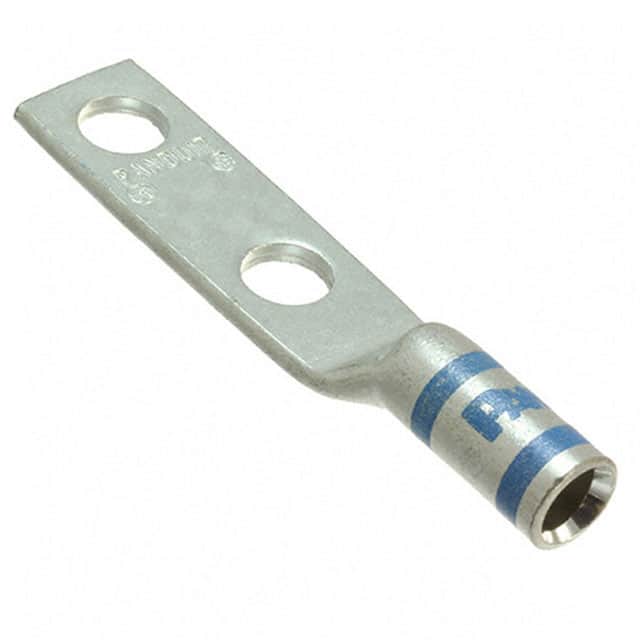

Panduit lugs [LCDX6-14B-L], PAE261

Panduit lugs [LCDX6-14B-L], PAE261

Mã kho: PAE261
Mã nhà sản xuất: LCDX6-14B-L
Tên nhà sản xuất: Panduit
139.410₫ - 139.410₫
139.410₫
139.410₫ - 139.410₫
139.410₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCDX6-14B-L

MÔ TẢ SẢN PHẨM

Two-hole, flex lug, #6 AWG wire, 1/4 stud hole, .75 hole spacing.

_THÔNG SỐ KỸ THUẬT:

Product Type Compression Connectors - Lugs
Sub Brand Pan-Lug
Stud Hole Size (In.) 42.826
Stud Hole Size (mm) 6.4
Stud Hole Spacing (In.) 0.75
Stud Hole Spacing (mm) 19.1
Barrel Type Standard Barrel Length with Inspection Window
Barrel Length (In.) 0.48
Barrel Length (mm) 12.2
Tongue Type Standard
Tongue Width (In.) 0.48
Tongue Width (mm) 12.2
Tongue Thickness (In.) 0.08
Tongue Thickness (mm) 2
Overall Length (In.) 2.03
Overall Length (mm) 51.6
Color Code Blue
Panduit Die Index Number P24
Burndy Die Index Number 7
Wire Strip Length (In.) 42,614
Wire Strip Length (mm) 14
Part Features Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
