Panduit lugs [LCDX6-14BH-L], PAE262

Name: Panduit lugs [LCDX6-14BH-L], PAE262
Brand: Panduit
SKU: PAE262
Price: 327350.0 VND
Availability: InStock

Mã kho: PAE262

Mã nhà sản xuất: LCDX6-14BH-L

Tên nhà sản xuất: Panduit

327.350₫ - 327.350₫

327.350₫

327.350₫ - 327.350₫

327.350₫

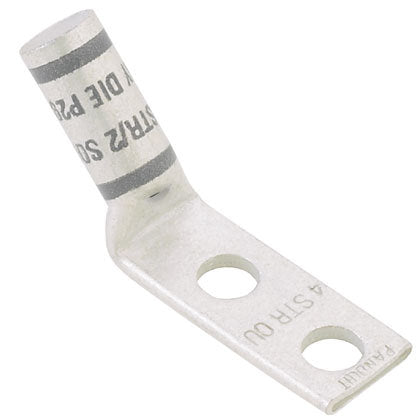

Two-hole, flex lug, #6 AWG wire, 1/4 stud hole, .75 hole spacing, 45° angle tongue.

Product Type	Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.826
Stud Hole Size (mm)	6.4
Stud Hole Spacing (In.)	0.75
Stud Hole Spacing (mm)	19.1
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	0.48
Barrel Length (mm)	12.2
Tongue Type	Standard
Tongue Width (In.)	0.48
Tongue Width (mm)	12.2
Tongue Thickness (In.)	0.08
Tongue Thickness (mm)	2
Overall Length (In.)	1.89
Overall Length (mm)	48
Color Code	Blue
Panduit Die Index Number	P24
Burndy Die Index Number	7
Wire Strip Length (In.)	42,614
Wire Strip Length (mm)	14
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
