Panduit lugs [LCDXN350-38D-6], PAE301

Name: Panduit lugs [LCDXN350-38D-6], PAE301
Brand: Panduit
SKU: PAE301
Price: 963390.0 VND
Availability: InStock

Mã kho: PAE301

Mã nhà sản xuất: LCDXN350-38D-6

Tên nhà sản xuất: Panduit

963.390₫ - 963.390₫

963.390₫

963.390₫ - 963.390₫

963.390₫

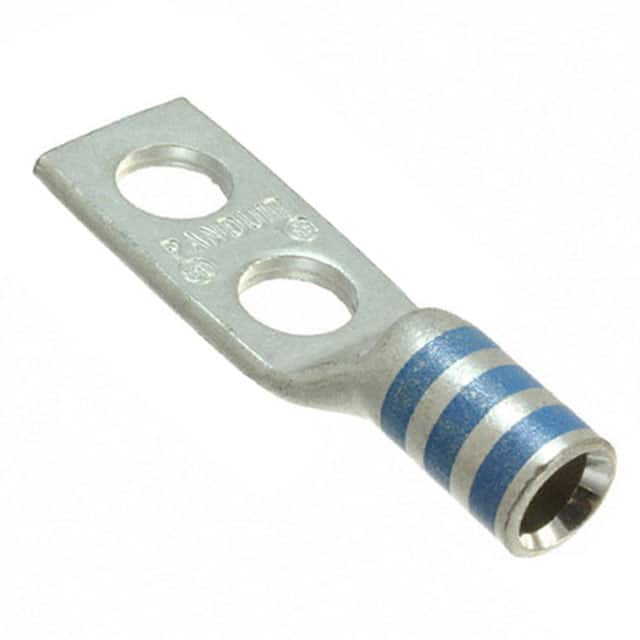

Two-hole, flex lug, standard barrel with window, narrow tongue, 350 kcmil cable, 3/8 stud hole, 1 hole spacing.

Product Type	Compression Connectors - Lugs
Stud Hole Size (In.)	3/8
Stud Hole Size (mm)	9.5
Stud Hole Spacing (In.)	1
Stud Hole Spacing (mm)	25.4
Tongue Type	Narrow
Tongue Thickness (In.)	0.26
Tongue Thickness (mm)	5.6
Tongue Width (In.)	1.06
Tongue Width (mm)	26.9
Overall Length (In.)	3.76
Overall Length (mm)	95
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.29
Barrel Length (mm)	32.8
Sub Brand	Pan-Lug
Wire Strip Length (In.)	1.38
Wire Strip Length (mm)	35
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window,narrow tongue for limited space apps.
