Panduit lugs [LCDXN750-12-3], PAE302

Name: Panduit lugs [LCDXN750-12-3], PAE302
Brand: Panduit
SKU: PAE302
Price: 2389760.0 VND
Availability: InStock

Mã kho: PAE302

Mã nhà sản xuất: LCDXN750-12-3

Tên nhà sản xuất: Panduit

2.389.760₫ - 2.389.760₫

2.389.760₫

2.389.760₫ - 2.389.760₫

2.389.760₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCDXN750-12-3

MÔ TẢ SẢN PHẨM

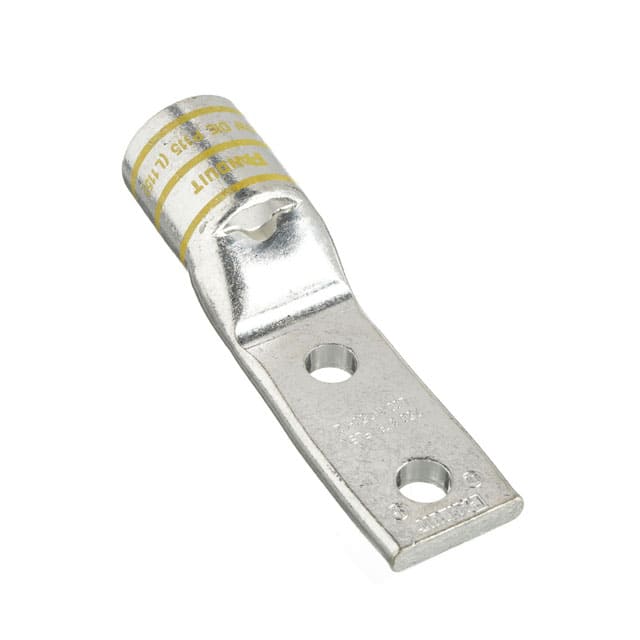

The two-hole standard barrel copper compression flex lug with inspection window and narrow tongue has a diesel locomotive flex conductor size of 777.7 kcmil. The stud hole is 1/2 (12.7mm) with a 1.75 (44.45mm) hole spacing.

_THÔNG SỐ KỸ THUẬT:

Product Type	Compression Connectors - Lugs
Stud Hole Size (In.)	1/2
Stud Hole Size (mm)	12.7
Stud Hole Spacing (In.)	1.75
Stud Hole Spacing (mm)	44.5
Tongue Type	Narrow
Tongue Thickness (In.)	0.35
Tongue Thickness (mm)	8.9
Tongue Width (In.)	1.5
Tongue Width (mm)	38.1
Overall Length (In.)	5.55
Overall Length (mm)	141
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.66
Barrel Length (mm)	42.2
Sub Brand	Pan-Lug
Wire Strip Length (In.)	1.75
Wire Strip Length (mm)	45
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window,narrow tongue for limited space apps.
