Panduit lugs [LCDXN750-38DF-3], PAE304

Name: Panduit lugs [LCDXN750-38DF-3], PAE304
Brand: Panduit
SKU: PAE304
Availability: InStock

Mã kho: PAE304

Mã nhà sản xuất: LCDXN750-38DF-3

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

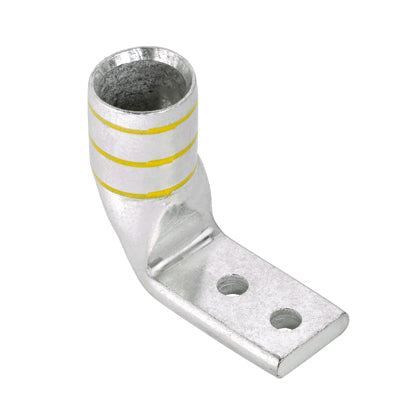

Two-hole, flex lug, standard barrel with window, narrow tongue, 750 kcmil cable, 3/8 stud hole, 1 hole spacing, 90° angle tongue.

Product Type	Compression Connectors - Lugs
Stud Hole Size (In.)	3/8
Stud Hole Size (mm)	9.5
Stud Hole Spacing (In.)	1
Stud Hole Spacing (mm)	25.4
Tongue Type	Narrow
Tongue Thickness (In.)	0.35
Tongue Thickness (mm)	8.9
Tongue Width (In.)	1.5
Tongue Width (mm)	38.1
Overall Length (In.)	3.76
Overall Length (mm)	95.5
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.66
Barrel Length (mm)	42.2
Sub Brand	Pan-Lug
Wire Strip Length (In.)	1.75
Wire Strip Length (mm)	44.5
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window,narrow tongue for limited space apps.
