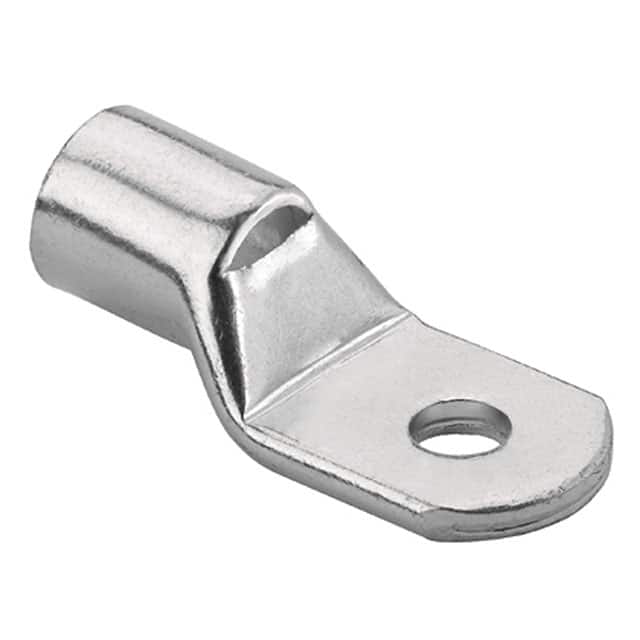

Panduit lugs [LCMA16-5-C], PAE312

Mã kho: PAE312
Mã nhà sản xuất: LCMA16-5-C
Tên nhà sản xuất: Panduit
Original price 0₫ - Original price 0₫
Original price
0₫
0₫ - 0₫
Current price 0₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCMA16-5-C

MÔ TẢ SẢN PHẨM

One-hole, metric conductor, standard barrel with window lug, 16mm² wire, M5 stud hole.

_THÔNG SỐ KỸ THUẬT:

Product Type Tin-Plated CopperCompression Connectors - Metric Lugs
Tongue Type Standard
Tongue Thickness (mm) 1.3
Overall Length (mm) 34.5
Barrel Type Standard Barrel Length with Inspection Window
Barrel Length (mm) 14.5
Standards Met Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire
Amperage (A) 65
Sub Brand Pan-Lug
Wire Strip Length (mm) 16
Part Features Tin plated to inhibit corrosion,color coded barrel,inspection window.
