Panduit lugs [LCMD16-8-Q], PAE342

Name: Panduit lugs [LCMD16-8-Q], PAE342
Brand: Panduit
SKU: PAE342
Availability: InStock

Mã kho: PAE342

Mã nhà sản xuất: LCMD16-8-Q

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

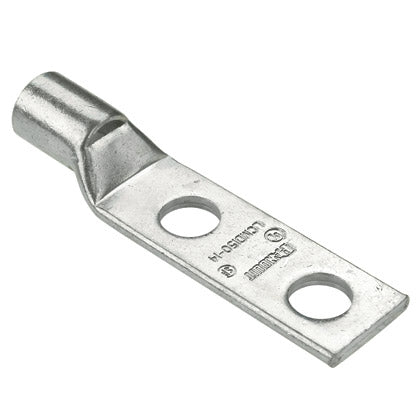

Two-hole, metric conductor, standard barrel with window lug, 16mm² wire, M8 stud hole.

Product Type	Tin-Plated CopperCompression Connectors - Metric Lugs
Stud Hole Spacing (mm)	44.5
Tongue Type	Standard
Tongue Thickness (mm)	1.2
Overall Length (mm)	79
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (mm)	14.5
Standards Met	Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire
Amperage (A)	65
Sub Brand	Pan-Lug
Wire Strip Length (mm)	16
Part Features	Tin plated to inhibit corrosion,color coded barrel, inspection window.
