Panduit lugs [LCMD240-12-5], PAC870

Mã kho: PAC870
Mã nhà sản xuất: LCMD240-12-5
Tên nhà sản xuất: Panduit
Original price 1.366.110₫ - Original price 1.366.110₫
Original price
1.366.110₫
1.366.110₫ - 1.366.110₫
Current price 1.366.110₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCMD240-12-5

MÔ TẢ SẢN PHẨM

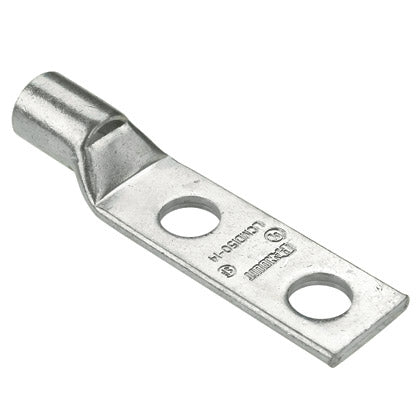

Two-hole, metric conductor, standard barrel with window lug, 240mm² wire, M12 stud hole.

_THÔNG SỐ KỸ THUẬT:

Product Type Tin-Plated CopperCompression Connectors - Metric Lugs
Stud Hole Spacing (mm) 44.5
Tongue Type Standard
Tongue Thickness (mm) 5.3
Overall Length (mm) 131
Barrel Type Standard Barrel Length with Inspection Window
Barrel Length (mm) 35
Standards Met Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire
Sub Brand Pan-Lug
Wire Strip Length (mm) 36.5
Part Features Tin plated to inhibit corrosion,color coded barrel, inspection window.
