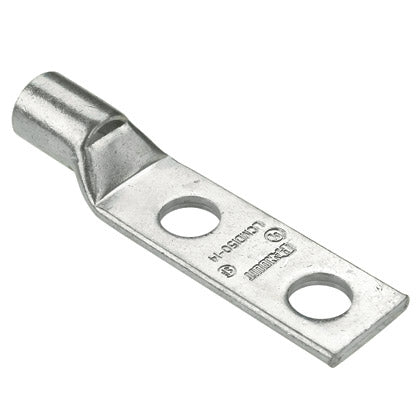

Panduit lugs [LCMD50-00-X], PAE363

Name: Panduit lugs [LCMD50-00-X], PAE363
Brand: Panduit
SKU: PAE363
Availability: InStock

Mã kho: PAE363

Mã nhà sản xuất: LCMD50-00-X

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

Two-hole, metric conductor, long blank tongue, standard barrel with window lug, 50mm² wire.

Product Type	Tin-Plated Copper Compression Connectors - Metric Lugs
Tongue Type	Blank
Tongue Length (In.)	3
Tongue Length (mm)	69.5
Tongue Thickness (mm)	1.8
Overall Length (mm)	94.5
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (mm)	20.3
Standards Met	Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire
Sub Brand	Pan-Lug
Wire Strip Length (mm)	21.8
Part Features	Tin plated to inhibit corrosion,color coded barrel, inspection window.
