Panduit lugs [ML4-CY], PAC975

Name: Panduit lugs [ML4-CY], PAC975
Brand: Panduit
SKU: PAC975
Price: 113010.0 VND
Availability: InStock

Mã kho: PAC975

Mã nhà sản xuất: ML4-CY

Tên nhà sản xuất: Panduit

113.010₫ - 113.010₫

113.010₫

113.010₫ - 113.010₫

113.010₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit ML4-CY

MÔ TẢ SẢN PHẨM

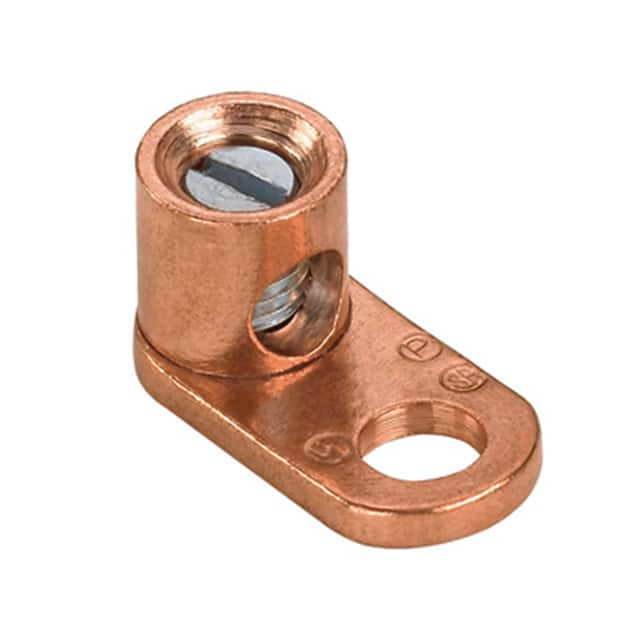

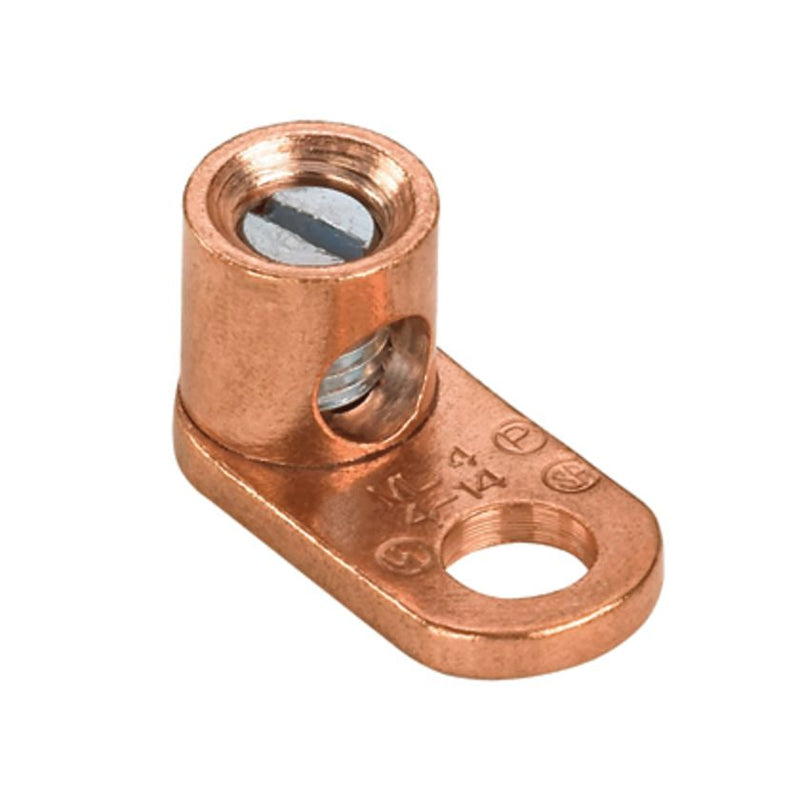

The ML4-CY Mechanical Cable Lug one-hole copper, single barrel, is made from high strength electrolytic copper to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel set screw provides a durable elec

_THÔNG SỐ KỸ THUẬT:

Application	Copper Code Conductor
Note	ML4-CY replaces ML4-C
Product Type	Mechanical Connectors - Lugs
Base Material	Copper
Minimum Copper Conductor Size (AWG SOL)	14
Minimum Copper Conductor Size (AWG STR)	14
Maximum Copper Conductor Size (AWG SOL)	4
Maximum Copper Conductor Size (AWG STR)	4
Stud Hole Size (In.)	1/4
Number of Holes	1
Tongue Type	Straight Tongue
Tongue Angle	Straight
Tongue Length (In.)	0.63
Tongue Length (mm)	16
Tongue Thickness (In.)	0.09
Tongue Thickness (mm)	2.2
Tongue Width (In.)	0.54
Tongue Width (mm)	13.7
Overall Height (In.)	0.55
Overall Height (mm)	13.9
Overall Length (In.)	1.11
Overall Length (mm)	28.1
Overall Width (In.)	0.54
Overall Width (mm)	13.71
Barrel Type	Single Barrel
Standards Met	cULus Listed for use up to 600V & Temperature Rated to 90°C
UL Temperature Rating (°C)	90
Maximum Voltage (V)	600
Slotted Screw	Yes
Sub Brand	Pan-Lug™
Part Features	Wire range taking,inspection window,high strength copper,compact design,flat for complete surface contact.
