Panduit lugs [S3/0-56R-C], PAF075

Name: Panduit lugs [S3/0-56R-C], PAF075
Brand: Panduit
SKU: PAF075
Price: 106810.0 VND
Availability: InStock

Mã kho: PAF075

Mã nhà sản xuất: S3/0-56R-C

Tên nhà sản xuất: Panduit

106.810₫ - 106.810₫

106.810₫

106.810₫ - 106.810₫

106.810₫

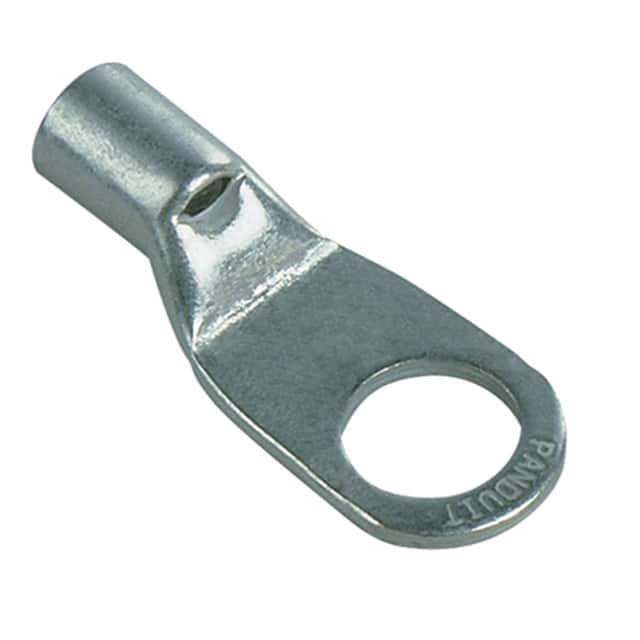

Tubular Ring Terminal, 3/0 AWG, 5/16 stud size, non-insulated, bulk package.

Maximum Wire Size (AWG)	3/0 AWG
Product Type	Loose Piece Ring Terminal
Base Material	Copper
Stud Hole Size (In.)	5/16
Tongue Thickness (In.)	0.13
Tongue Thickness (mm)	3.3
Tongue Width (In.)	0.96
Tongue Width (mm)	24.4
Overall Length (In.)	2.1
Overall Length (mm)	53.3
Overall Width (In.)	0.96
Overall Width (mm)	24384
Barrel Type	Seamless Tubular
Barrel Length (In.)	0.83
Barrel Length (mm)	21.1
Insulation Material	Non-Insulated
Finish/Coating	Tinned
Sub Brand	Pan-Lug
Wire Strip Length (In.)	7/8
Wire Strip Length (mm)	22.225
Part Features	Seamless tubular barrel provides a consistent high performance quality crimp, Round double thick toungue for reliable power applications, Barrel of terminal internally beveled to provide quick and easy wire insertion, Inspection window allows visual inspection of proper wire insertion.
