Panduit lugs [S6-56R-E], PAC927

Name: Panduit lugs [S6-56R-E], PAC927
Brand: Panduit
SKU: PAC927
Availability: InStock

Mã kho: PAC927

Mã nhà sản xuất: S6-56R-E

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

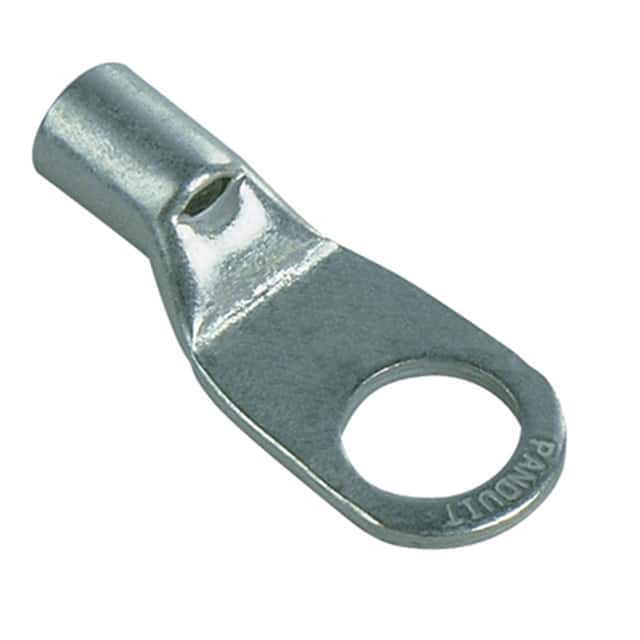

Tubular Ring Terminal, 6 AWG, 5/16 stud size, non-insulated, standard package.

Maximum Wire Size (AWG)	6 AWG
Product Type	Loose Piece Ring Terminal
Base Material	Copper
Stud Hole Size (In.)	5/16
Tongue Thickness (In.)	0.07
Tongue Thickness (mm)	1.8
Tongue Width (In.)	0.56
Tongue Width (mm)	14.2
Overall Length (In.)	1.4
Overall Length (mm)	35.6
Overall Width (In.)	0.56
Overall Width (mm)	14224
Barrel Type	Seamless Tubular
Barrel Length (In.)	0.48
Barrel Length (mm)	12.2
Insulation Material	Non-Insulated
Finish/Coating	Tinned
Sub Brand	Pan-Lug
Wire Strip Length (In.)	1/2
Wire Strip Length (mm)	12.7
Part Features	Seamless tubular barrel provides a consistent high performance quality crimp, Round double thick toungue for reliable power applications, Barrel of terminal internally beveled to provide quick and easy wire insertion, Inspection window allows visual inspection of proper wire insertion.
