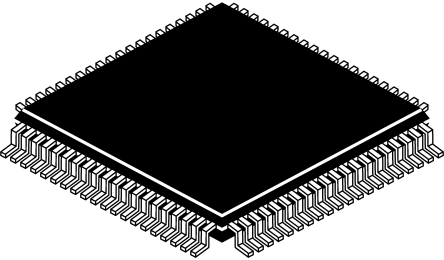

Analog Devices ADUC7126BSTZ126, 16/32bit ARM7TDMI Microcontroller, 41.78MHz, 126 kB Flash, 80-Pin LQFP [ADUC7126BSTZ126]; 160-4987
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | ADuC7 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 80 |
| Device Core | ARM7TDMI |
| Data Bus Width | 16/32bit |
| Program Memory Size | 126 kB |
| Maximum Frequency | 41.78MHz |
| RAM Size | 32 kB |
| Number of PWM Units | 1 |
| ADC Channels | 16 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 3.3 V |
| Maximum Operating Temperature | +125 °C |
| Length | 12.2mm |
| ADCs | 1(16 x 12 bit) |
| Height | 1.45mm |
| PWM Channels | 6 |
| Width | 12.2mm |
| Timers | 4 |
| Dimensions | 12.2 x 12.2 x 1.45mm |
| Pulse Width Modulation | 1(6 x 16 bit) |
| Program Memory Type | Flash |
| Number of UART Channels | 2 |
| Number of Timers | 4 |
| Number of I2C Channels | 2 |
| PWM Resolution | 16bit |
| Instruction Set Architecture | RISC |
| Number of ADC Units | 1 |
| ADC Resolution | 12bit |
| Minimum Operating Temperature | -40 °C |
