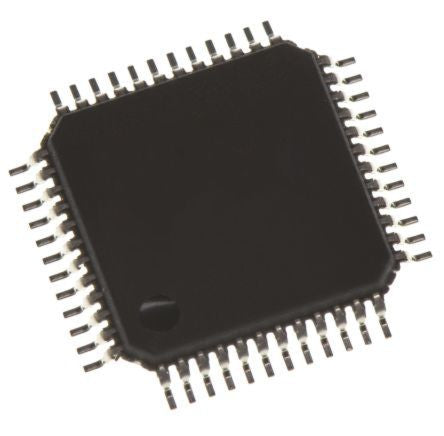

Cypress Semiconductor CY8C4146AZI-S433, 32bit ARM Cortex M0 Microcontroller, 48MHz, 64 kB Flash, 48-Pin TQFP [CY8C4146AZI-S433]; 177-1239
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | CY8C4100 |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 48 |
| Device Core | ARM Cortex M0 |
| Data Bus Width | 32bit |
| Program Memory Size | 64 kB |
| Maximum Frequency | 48MHz |
| RAM Size | 8 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 2 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 1.8 → 5.5 V |
| Number of I2C Channels | 2 |
| Number of Timers | 5 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1 (5 x 16 bit) |
| Number of UART Channels | 2 |
| Length | 7mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 2 |
| ADC Resolution | 10 bit, 12 bit |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16bit |
| Instruction Set Architecture | Thumb-2 |
| Number of CAN Channels | 1 |
| ADCs | 1 (1 x 10 bit), 1 (1 x 12 bit) |
| Timer Resolution | 16bit |
| Height | 1.4mm |
| Number of LIN Channels | 1 |
| PWM Channels | 5 |
| Width | 7mm |
| Dimensions | 7 x 7 x 1.4mm |
