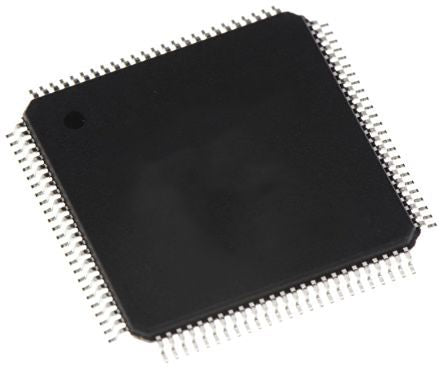

Cypress Semiconductor, CY8C5688AXI-LP099 [CY8C5688AXI-LP099]; 194-9156
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | CY8C5688AXI |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 100 |
| Device Core | ARM Cortex-M3 |
| Data Bus Width | 32bit |
| Program Memory Size | 256 kB |
| Maximum Frequency | 80MHz |
| RAM Size | 64 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 2 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 1.71 → 5.5 V |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1 (4 x 16 bit) |
| Number of Timers | 4 |
| Number of UART Channels | 1 |
| Number of I2C Channels | 1 |
| Number of ADC Units | 1 |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| Number of CAN Channels | 1 |
| ADC Resolution | 12bit |
| Maximum Operating Temperature | +85 °C |
| Timers | 1 (4 x 16 bit) |
| Dimensions | 14 x 14 x 1.4mm |
| Length | 14mm |
| ADCs | 1 (2 x 12 bit) |
| Timer Resolution | 16bit |
| Height | 1.4mm |
| Number of LIN Channels | 1 |
| PWM Channels | 4 |
| Width | 14mm |
| Data Rate | 1Mbit/s |
