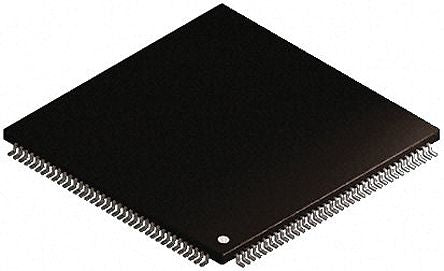

Infineon XC161CJ16F40FBBKXUMA1, 16bit C166S V2 Microcontroller, 20MHz, 128 kB Flash, 144-Pin TQFP [XC161CJ16F40FBBKXUMA1]; 166-0919
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | XC166 |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 144 |
| Device Core | C166S V2 |
| Data Bus Width | 16bit |
| Program Memory Size | 128 kB |
| Maximum Frequency | 20MHz |
| RAM Size | 2 (DPRAM) kB, 2 (PSRAM) kB, 4 (DSRAM) kB |
| ADC Channels | 12 |
| Typical Operating Supply Voltage | 2.35 → 2.7 (Core) V, 4.4 → 5.5 (I/O) V |
| Timer Resolution | 16bit |
| Height | 1.4mm |
| Number of Timers | 5 |
| ADCs | 1 (12 x 10/18 bit) |
| Length | 20mm |
| Maximum Operating Temperature | +125 °C |
| Program Memory Type | Flash |
| Number of ADC Units | 1 |
| Instruction Set Architecture | CISC, DSP, RISC |
| ADC Resolution | 8 bit, 10 bit |
| Data Rate | 1Mbps |
| Dimensions | 20 x 20 x 1.4mm |
| Minimum Operating Temperature | -40 °C |
| Width | 20mm |
| Timers | 5 x 16 bit |
