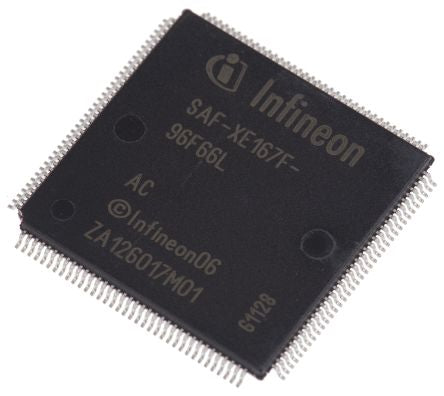

Infineon XE167F96F66LACFXUMA1, 16 bit, 32 bit C166S V2 Microcontroller, 66MHz, 768 kB Flash, 144-Pin LQFP [XE167F96F66LACFXUMA1]; 752-8423
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | XE166 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 144 |
| Device Core | C166S V2 |
| Data Bus Width | 16 bit, 32 bit |
| Program Memory Size | 768 kB |
| Maximum Frequency | 66MHz |
| RAM Size | 82 kB |
| Number of PWM Units | 3 |
| ADC Channels | 24 |
| Number of SPI Channels | 6 |
| Typical Operating Supply Voltage | 3 to 5.5 V |
| Number of Timers | 5 |
| Number of I2C Channels | 6 |
| Minimum Operating Temperature | -40 °C |
| Timer Resolution | 16bit |
| Height | 1.5mm |
| Number of LIN Channels | 6 |
| ADC Resolution | 10bit |
| Number of ADC Units | 2 |
| Length | 20mm |
| ADCs | 2(24 x 10 bit) |
| Pulse Width Modulation | 1(4 Channel), 2(16 Channel) (CCU) |
| Width | 20mm |
| Number of CAN Channels | 5 |
| Instruction Set Architecture | CISC, DSP, RISC |
| Maximum Operating Temperature | +85 °C |
| PWM Channels | 20 |
| Number of UART Channels | 6 |
| Timers | 5 x 16 bit (GPT) |
| Dimensions | 20 x 20 x 1.5mm |
| Program Memory Type | Flash |
