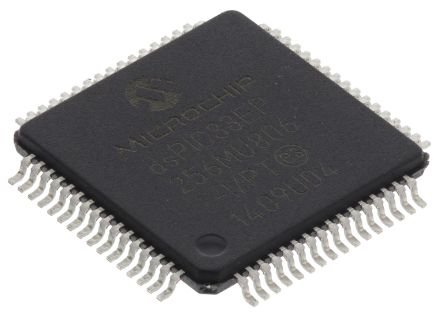

dsPIC33EP256MU806-I/PT Microchip, 16bit DSP 70MHz 280 kB Flash 64-Pin TQFP [dsPIC33EP256MU806-I/PT]; 755-9385
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency | 70MHz |
| Data Bus Width | 16bit |
| RAM Size | 28 kB |
| Instruction Set Architecture | C |
| Program Memory Size | 280 kB |
| Program Memory Type | Flash |
| Mounting Type | Surface Mount |
| Package Type | TQFP |
| Pin Count | 64 |
| Typical Operating Supply Voltage | 3 → 3.6 V |
| Number of UART Channels | 4 |
| Number of SPI Channels | 4 |
| Dimensions | 10 x 10 x 1mm |
| Length | 10mm |
| Pulse Width Modulation | 8 (1 x 8.32 ns) |
| Maximum Operating Temperature | +85 °C |
| Number of I2C Channels | 2 |
| Height | 1mm |
| Timers | 4 x 32 bit, 9 x 16 bit |
| Timer Resolution | 16 bit, 32 bit |
| ADC Channels | 24 |
| ADC Resolution | 12 bit, 24 bit |
| Number of CAN Channels | 2 |
| Minimum Operating Temperature | -40 °C |
| ADCs | 24 (2 x 12/24 bit) |
| PWM Resolution | 8.32ns |
| Width | 10mm |
| Number of Timers | 13 |
| USB Channels | 1 |
| Number of ADC Units | 2 |
| Number of PWM Units | 1 |
| PWM Channels | 8 |
