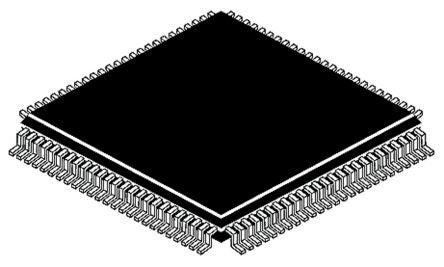

Renesas Electronics R5F565N9BDFP#30, 32bit RXv2 CPU Microcontroller, 120MHz, 1 MB Flash, 100-Pin LFQFP [R5F565N9BDFP#30]; 168-1723
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | RX65N |
| Package Type | LFQFP |
| Mounting Type | Surface Mount |
| Pin Count | 100 |
| Device Core | RXv2 CPU |
| Data Bus Width | 32bit |
| Program Memory Size | 1 MB |
| Maximum Frequency | 120MHz |
| RAM Size | 256 kB |
| USB Channels | 1 |
| ADC Channels | 29 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 3.6 (Maximum) V |
| Dimensions | 14.1 x 14.1 x 1.55mm |
| Number of I2C Channels | 3 |
| Number of Timers | 3 |
| Height | 1.55mm |
| Timer Resolution | 8 bit, 16 bit, 32 bit |
| ADCs | 2 (29 x 12 bit) |
| Length | 14.1mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 2 |
| Number of CAN Channels | 2 |
| Instruction Set Architecture | CISC |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 12bit |
| Timers | 1 (6 x 16 bit), 2 (4 x 4 bit), 9 (1 x 32 bit), 9 (8 x 16 bit) |
| Width | 14.1mm |
| Program Memory Type | Flash |
