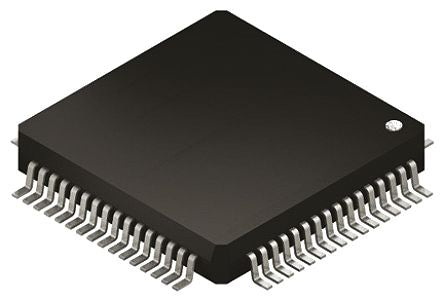

STMicroelectronics STM32F373R8T6, 32bit ARM Cortex M4 MCU, 72MHz, 64 kB Flash, 64-Pin LQFP [STM32F373R8T6]; 145-8817
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM32F |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 64 kB |
| Maximum Frequency | 72MHz |
| RAM Size | 32 kB |
| USB Channels | 1 |
| Number of PWM Units | 2 |
| ADC Channels | 16 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 2 → 3.6 V |
| Program Memory Type | Flash |
| Number of I2C Channels | 2 |
| Number of Timers | 17 |
| Dimensions | 10.2 x 10.2 x 1.45mm |
| Maximum Operating Temperature | +85 °C |
| Pulse Width Modulation | 2 (16 bit) |
| ADC Resolution | 12 bit, 16 bit |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16bit |
| Instruction Set Architecture | RISC |
| Number of CAN Channels | 1 |
| Length | 10.2mm |
| Number of ADC Units | 4 |
| Timers | 2 x 32 bit, 12 x 16 bit |
| Number of USART Channels | 3 |
| Width | 10.2mm |
| Height | 1.45mm |
| ADCs | 16-ch x 12-bit, 16-ch x 16-bit |
| Timer Resolution | 16 bit, 32 bit |
