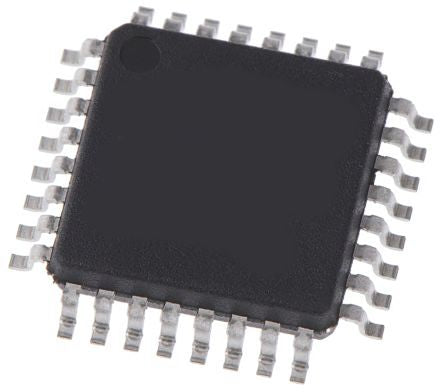

STM8AF6266TDY, 8BIT MICROCONTROLLER [STM8AF6266TDY]; 192-3640
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM8A |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 32 |
| Data Bus Width | 8bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 16MHz |
| RAM Size | 2 kB |
| ADC Channels | 7 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 3 → 5.5 V |
| Number of Timers | 2 |
| Automotive Standard | AEC-Q100 |
| Number of I2C Channels | 1 |
| Maximum Operating Temperature | +150 °C |
| ADCs | 1 (7 x 10 bit) |
| Length | 7.2mm |
| Number of UART Channels | 1 |
| Dimensions | 7.2 x 7.2 x 1.45mm |
| Timers | 1 (1 x 8 bit), 1 (3 x 16 bit) |
| ADC Resolution | 10bit |
| Width | 7.2mm |
| Number of LIN Channels | 1 |
| Height | 1.45mm |
| Timer Resolution | 8 bit, 16 bit |
| Minimum Operating Temperature | -40 °C |
| Program Memory Type | Flash |
| Number of ADC Units | 1 |
| Instruction Set Architecture | CISC |
