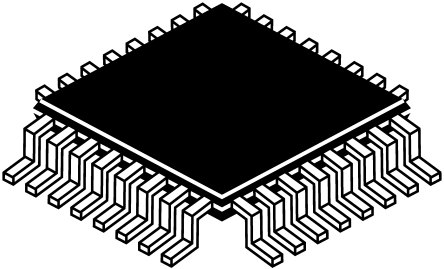

STMicroelectronics STM8S105K4T3C, 8bit STM8 Microcontroller, 16MHz, 1.024 kB, 16 kB Flash, 32-Pin LQFP [STM8S105K4T3C]; 724-9928
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM8S |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 32 |
| Device Core | STM8 |
| Data Bus Width | 8bit |
| Program Memory Size | 1.024 kB, 16 kB |
| Maximum Frequency | 16MHz |
| RAM Size | 2 kB |
| Number of PWM Units | 2 |
| ADC Channels | 7 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 2.95 → 5.5 V |
| PWM Channels | 5 |
| Width | 7.2mm |
| Pulse Width Modulation | 2(5 x 16 bit) |
| ADCs | 7 x 10 bit |
| Length | 7.2mm |
| Number of ADC Units | 1 |
| Instruction Set Architecture | CISC |
| ADC Resolution | 10bit |
| Number of I2C Channels | 1 |
| Number of Timers | 5 |
| Number of UART Channels | 1 |
| Program Memory Type | Flash |
| Dimensions | 7.2 x 7.2 x 1.45mm |
| Timers | 5 x 16 bit |
| Height | 1.45mm |
| Timer Resolution | 16bit |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
