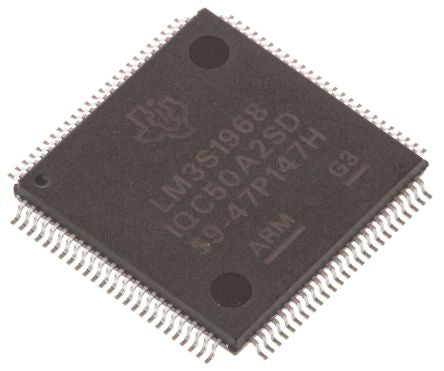

Texas Instruments LM3S1968-IQC50-A2, 32bit ARM Cortex M3 Microcontroller, 50MHz, 256 kB Flash, 100-Pin LQFP [LM3S1968-IQC50-A2]; 709-4241
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | Stellaris |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 100 |
| Device Core | ARM Cortex M3 |
| Data Bus Width | 32bit |
| Program Memory Size | 256 kB |
| Maximum Frequency | 50MHz |
| RAM Size | 64 kB |
| Number of PWM Units | 3 |
| ADC Channels | 8 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 2.25 → 2.75 V, 3 → 3.6 V |
| Timers | 8 x 16 bit |
| Dimensions | 14 x 14 x 1.4mm |
| Timer Resolution | 16bit |
| Program Memory Type | Flash |
| Height | 1.4mm |
| Number of UART Channels | 3 |
| Number of Timers | 8 |
| Number of I2C Channels | 2 |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| PWM Channels | 6 |
| Width | 14mm |
| ADC Resolution | 10bit |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 10 bit |
| Length | 14mm |
| Number of ADC Units | 1 |
| Pulse Width Modulation | 3(6 x 16 bit) |
| Maximum Operating Temperature | +85 °C |
