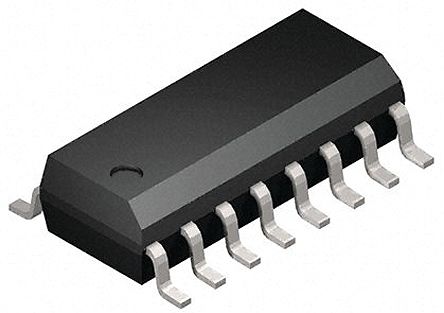

ON Semiconductor NCV5700DR2G High and Low Side IGBT Gate Driver Module, 6.8 A, 7.8 A 16-Pin SOIC [NCV5700DR2G]; 171-8349
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Drivers | 1 |
| Minimum Operating Supply Voltage | 0 V |
| Maximum Operating Supply Voltage | 30 V |
| Topology | High and Low Side |
| Mounting Type | Surface Mount |
| Peak Output Current | 6.8 A, 7.8 A |
| Number of Outputs | 1 |
| Polarity | Non-Inverting |
| Package Type | SO |
| Pin Count | 16 |
| Bridge Type | Half Bridge |
| High and Low Sides Dependency | Yes |
| Time Delay | 75ns |
| Dimensions | 10 x 4 x 1.5mm |
| Width | 4mm |
| Fall Time | 7.9ns |
| Minimum Operating Temperature | -40 °C |
| Length | 10mm |
| Rise Time | 9.2ns |
| Automotive Standard | AEC-Q100 |
| Height | 1.5mm |
| Maximum Operating Temperature | +125 °C |
