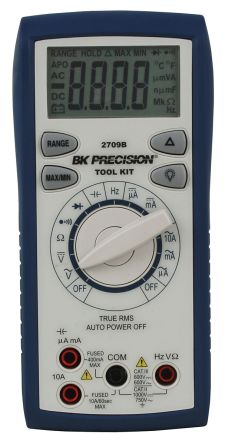

Auto Ranging True RMS Tool Kit DMM [BK2709B]; 192-4583
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Multimeter Type | Handheld |
| Absolute Maximum AC Current Measurement | 10A ac |
| Absolute Maximum DC Current Measurement | 10A dc |
| Absolute Maximum Resistance Measurement | 66MΩ |
| Absolute Maximum AC Voltage Measurement | 750V ac |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum Capacitance Measurement | 66mF |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance |
| True RMS | Yes |
| Maximum Frequency | 500Hz |
| Display Type | LCD |
| Model Number p | BK2709B |
| AC Current Measurement Resolution | 0.1µA ac |
| DC Current Measurement Resolution | 0.1µA dc |
| Resistance Measurement Resolution | 100mΩ |
| AC Voltage Measurement Resolution | 0.1mV ac |
| DC Voltage Measurement Resolution | 0.1mV dc |
| Capacitance Measurement Resolution | 1pF |
| Safety Category Voltage | 600 V, 750 V, 1000 V |
| Best DC Current Accuracy | ±3% + 3 Digits |
| Safety Category Level | CAT II, CAT III |
| Best Resistance Measurement Accuracy | ±3.5% + 5 Digits |
| Battery Type | 9V |
| Minimum Operating Temperature | 0°C |
| Height | 165mm |
| Best AC Current Accuracy | ±3.5% + 10 Digits |
| Width | 42.5mm |
| Length | 78mm |
| Dimensions | 78 x 42.5 x 165mm |
| Best DC Voltage Accuracy | ±0.5% + 2 Digits |
| Maximum Operating Temperature | +50°C |
| Weight | 285g |
| Battery Life | 150 h |
| Best AC Voltage Accuracy | ±2% + 8 Digits |
| Best Capacitance Measurement Accuracy | ±5% +20 Digits |
