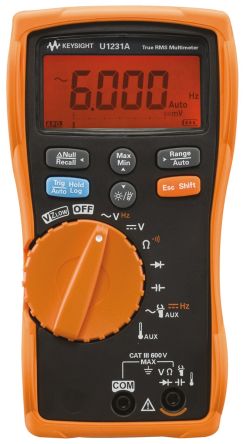

Keysight Technologies U1231A Handheld Digital Multimeter 600V ac 600V dc [U1231A]; 740-3516
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Multimeter Type | Handheld |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum Resistance Measurement | 60MΩ |
| Absolute Maximum Temperature Measurement | +1372°C |
| Absolute Maximum Capacitance Measurement | 10mF |
| Functions Measured | AC Voltage, Capacitance, Continuity, DC Voltage, Diode, Frequency, Resistance, Temperature |
| True RMS | Yes |
| Maximum Frequency | 1kHz |
| Display Type | LCD |
| Model Number p | U1231A |
| AC Current Measurement Resolution | 0.01µA ac |
| Resistance Measurement Resolution | 100mΩ |
| DC Voltage Measurement Resolution | 0.1mV dc |
| AC Voltage Measurement Resolution | 0.1mV ac |
| Temperature Measurement Resolution | 0.1°C |
| Capacitance Measurement Resolution | 1nF |
| Best DC Voltage Accuracy | ±0.5% + 2 Digits |
| Maximum Operating Temperature | +55°C |
| Best Capacitance Measurement Accuracy | ±1.9% + 2 Digits |
| Minimum Operating Temperature | -10°C |
| Height | 169mm |
| Battery Life | 500 h |
| Weight | 365g |
| Safety Category Level | CAT III |
| Safety Category Voltage | 600V |
| Battery Type | AAA x 4 |
| Width | 86mm |
| Best Resistance Measurement Accuracy | ±1.5% + 3 Digits |
| Length | 55mm |
| Best Temperature Measurement Accuracy | ±1% + 1 °C |
| Dimensions | 55 x 86 x 169mm |
| Best AC Voltage Accuracy | ±4% + 3 Digits |
