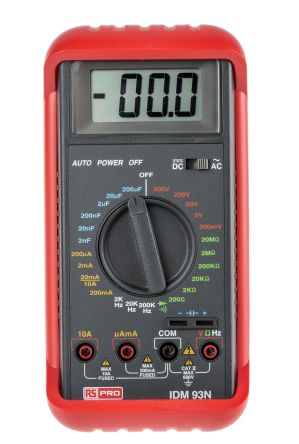

RS PRO IDM93N Handheld Digital Multimeter, 10A ac 600V ac 10A dc 600V dc; 123-3245
Mã kho: 1233245
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Multimeter Type | Handheld |
| Absolute Maximum AC Current Measurement | 10A ac |
| Absolute Maximum DC Current Measurement | 10A dc |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum Resistance Measurement | 20MΩ |
| Absolute Maximum Capacitance Measurement | 200µF |
| Functions Measured | AC Current, AC Voltage, Capacitance, Conductance, DC Current, DC Voltage, Diode, Frequency, Resistance, RMS, Temperature |
| True RMS | No |
| Maximum Frequency | 200kHz |
| Display Type | LCD |
| Model Number p | IDM93N |
| DC Current Measurement Resolution | 0.1µA dc |
| AC Current Measurement Resolution | 0.1µA ac |
| Resistance Measurement Resolution | 100mΩ |
| DC Voltage Measurement Resolution | 0.1mV dc |
| AC Voltage Measurement Resolution | 0.1mV ac |
| Capacitance Measurement Resolution | 1pF |
| Best DC Voltage Accuracy | ±0.5% + 1 Digits |
| Dimensions | 95 x 50 x 192mm |
| Width | 50mm |
| Best AC Current Accuracy | ±2.5% + 3 Digits |
| Length | 95mm |
| Height | 192mm |
| Minimum Operating Temperature | 0°C |
| Best Capacitance Measurement Accuracy | ±2% + 4 Digits |
| Best AC Voltage Accuracy | ±1.3% + 4 Digits |
| Best DC Current Accuracy | ±1% + 1 Digits |
| Safety Category Level | CAT II |
| Weight | 550 (With Holster)g |
| Battery Life | 150 h |
| Maximum Operating Temperature | +50°C |
| Best Resistance Measurement Accuracy | ±0.8% + 1 Digits |
| Battery Type | AAA 1.5V x 2, AM4, IEC LR03, IEC6F22, NEDA 1604, 9V |
| Safety Category Voltage | 600V |
