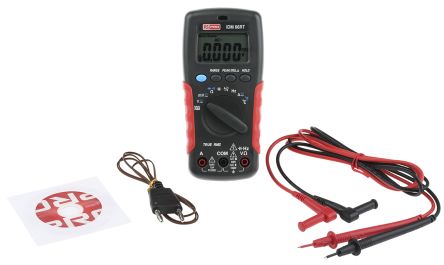

RS PRO IDM66RT Handheld Digital Multimeter, 10A ac 1000V ac 10A dc 1000V dc; 123-3253
Mã kho: 1233253
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Multimeter Type | Handheld |
| Absolute Maximum AC Current Measurement | 10A ac |
| Absolute Maximum DC Current Measurement | 10A dc |
| Absolute Maximum Resistance Measurement | 40MΩ |
| Absolute Maximum AC Voltage Measurement | 1000V ac |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum Temperature Measurement | +400 °C, +752 °F |
| Absolute Maximum Capacitance Measurement | 10mF |
| Functions Measured | AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature |
| True RMS | Yes |
| Maximum Frequency | 500Hz |
| Display Type | LCD |
| Model Number p | IDM66RT |
| DC Current Measurement Resolution | 0.001A dc |
| AC Current Measurement Resolution | 0.001A ac |
| Resistance Measurement Resolution | 100mΩ |
| DC Voltage Measurement Resolution | 0.01mV dc |
| AC Voltage Measurement Resolution | 1mV ac |
| Temperature Measurement Resolution | 0.1 °C, 0.1 °F |
| Capacitance Measurement Resolution | 0.01nF |
| Best DC Voltage Accuracy | ±0.5% + 2 Digits |
| Dimensions | 74 x 44 x 156mm |
| Best Temperature Measurement Accuracy | ±1 % + 10 Digits |
| Best AC Voltage Accuracy | ±1% + 5 Digits |
| Best Capacitance Measurement Accuracy | ±1.9% + 8 Digits |
| Best AC Current Accuracy | ±1.5% + 5 Digits |
| Width | 44mm |
| Length | 74mm |
| Minimum Operating Temperature | -10°C |
| Best DC Current Accuracy | ±1% + 2 Digits |
| Battery Life | 300 h |
| Weight | 250 (With Battery)g |
| Height | 156mm |
| Battery Type | AAA 1.5 V, AM4, IEC LR03 |
| Safety Category Level | CAT III |
| Safety Category Voltage | 600V |
| Best Resistance Measurement Accuracy | ±0.8% + 2 Digits |
| Maximum Operating Temperature | +50°C |
