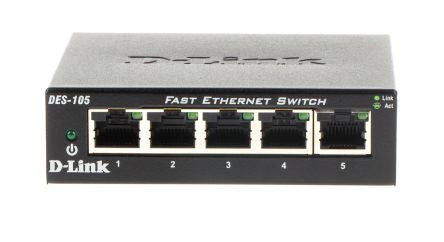

D-Link Unmanaged Network Switch 5 port, 10/100Mbit/s [DES-105/B]; 760-3984
D-Link 5 Port Desktop Switch
The D-Link 5-port Fast Ethernet unmanaged desktop switch is 10/100 Mbps that allows you to quickly set up a wired network. It connects the DES-105 to multiple computers together to share files and folders or connect it to a router to share an Internet connection. The switch provides a cost-effective way for SOHO and small to medium businesses (SMB) to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations.
The Des-105 also features D-Link's Green Ethernet technology which saves power when the switch is active and inactive and provides energy savings and a longer life for the device.
The DES-105 is great for anyone planning to upgrade to Fast Ethernet. It has been designed for areas where traffic on the network and the amount of people using it is increasing.
Features and Benefits
Plug-and-play for easy installation
10/100 front Ethernet ports with two LED indicators - quickly distinguish link status and speed
Switching fabric: 1.0Gbps
Auto-MDI/MDIX crossover
Flow Control for reliable transmission
Innovative D-Link Green technology
Support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports
802.3x flow control feature activates to minimize dropped packets
Plug-and-play networking switch that offers D-Link's Green Technology to save energy and reduce heat
Network Cables: 10BASE-T:UTP CAT 3, 4, 5/5e (100 m max.), EIA/TIA-586 100-ohm STP (100 m max.)
Packet Filtering/Forwarding Rates:Ethernet:14,880pps per port
Slot for Kensington security lock
Robust design – has a rugged metal housing
Full/half-duplex for Ethernet/Fast Ethernetspeeds
Fanless – quiet operation
Weight – 265g
UK plug
Applications
The DES-105 is an unmanaged 10/100Mbps Fast Ethernet switch that offers solutions for the growing bandwidth needs of small Ethernet workgroups. It is ideal for:
Users, workgroups, labs, departments, or growing offices can now deliver large amounts of multimedia, image and video information across the network in almost no time
Small companies
It connect to your computers, printers, copiers and other office equipment
Certifications
IEEE 802.3x Flow Control
IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet
(twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
FCC Class B
ICES-003 Class B
CE Class B
C-Tick Class B
Supplied with
DES-105 5-Port 10/100Mbps Ethernet Switch
External Power Adapter
Wall Mount Kit
Quick Installation Guide
