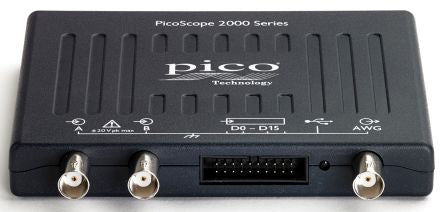

Pico Technology, PicoScope 2205A MSO Mixed Signal Oscilloscope, 2 Analogue. Ch., 16 Digital. Ch., 25MHz [PicoScope 2205A MSO]; 111-6767
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | 2000 |
| Bandwidth | 25MHz |
| Number of Analogue Channels | 2 |
| Number of Digital Channels | 16 |
| Sample Rate Random | 500 M samples/s |
| UART Interface | Yes |
| USB Interface | Yes |
| Vertical Resolution | 8 bit |
| Minimum Time Base | 2ns/div |
| Maximum Time Base | 5000s/div |
| Minimum Vertical Sensitivity | 4mV/div |
| Maximum Vertical Sensitivity | 4V/div |
| Model Number p | PQ008 |
| Input Impedance | 200 kΩ |
| Height | 18.8mm |
| Minimum Operating Temperature | 0°C |
| CAN Interface | Yes |
| Length | 130mm |
| Lin Interface | Yes |
| Maximum Operating Temperature | +50°C |
| IIC Interface | Yes |
| Rise Time | 14ns |
| SPI Interface | Yes |
| Dimensions | 130 x 104 x 18.8mm |
| Weight | <200g |
| Input Capacitance | 8 pF |
| RS232 Interface | Yes |
| Width | 104mm |
