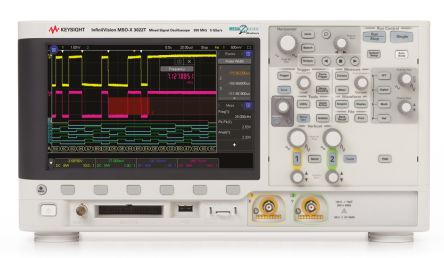

Keysight Technologies, MSOX3022T Mixed Signal Oscilloscope, 2 Analogue. Ch., 16 Digital. Ch., 200MHz [MSOX3022T]; 833-5143
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | InfiniiVision 3000 X |
| Bandwidth | 200MHz |
| Number of Analogue Channels | 2 |
| Number of Digital Channels | 16 |
| Record Length | 2 (Digital) M points/ch, 4 (Analog) M points/ch |
| Sample Rate Random | 5 G samples/s |
| UART Interface | Yes |
| USB Interface | Yes |
| Vertical Resolution | 8 bit |
| Minimum Time Base | 2ns/div |
| Maximum Time Base | 50s/div |
| Minimum Vertical Sensitivity | 1mV/div |
| Model Number p | MSOX3022T |
| Input Impedance | 1 MΩ |
| Height | 204mm |
| Minimum Operating Temperature | 0°C |
| Dimensions | 142 x 381 x 204mm |
| Input Capacitance | 8 pF |
| RS232 Interface | Yes |
| Screen Size | 8.5in |
| Safety Category Level | CAT I |
| Width | 381mm |
| Power Source | Mains |
| RS422 Interface | Yes |
| CAN Interface | Yes |
| Safety Category Voltage | 800V |
| RS485 Interface | Yes |
| Length | 142mm |
| Weight | 4kg |
| SPI Interface | Yes |
| Safety Category | CAT I 800 V |
| Lin Interface | Yes |
| Maximum Operating Temperature | +55°C |
| IIC Interface | Yes |
| Display Type | Capacitive Touch Gesture-Enabled Display |
| Rise Time | ≤1.75ns |
