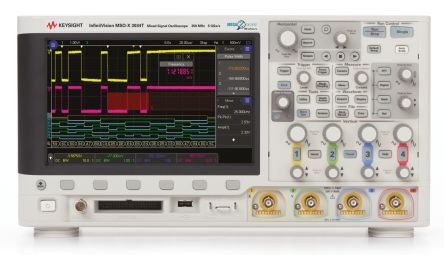

Keysight Technologies, MSOX3034T Mixed Signal Oscilloscope, 4 Analogue. Ch., 16 Digital. Ch., 350MHz [MSOX3034T]; 833-5159
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | InfiniiVision 3000 X |
| Bandwidth | 350MHz |
| Number of Analogue Channels | 4 |
| Number of Digital Channels | 16 |
| Record Length | 1 M points/ch, 2 M points/ch |
| Sample Rate Random | 2 G samples/s, 4 G samples/s |
| UART Interface | Yes |
| USB Interface | Yes |
| Vertical Resolution | 1 (Digital) bit, 8 (Analogue) bit |
| Minimum Time Base | 2ns/div |
| Maximum Time Base | 50s/div |
| Minimum Vertical Sensitivity | 1mV/div |
| Maximum Vertical Sensitivity | 5V/div |
| Screen Size | 8.5in |
| Length | 381mm |
| Power Source | Mains |
| Width | 142mm |
| Display Type | WVGA |
| IIC Interface | Yes |
| Maximum Operating Temperature | +55°C |
| Lin Interface | Yes |
| Safety Category Level | CAT I |
| RS485 Interface | Yes |
| SPI Interface | Yes |
| Rise Time | 1ns |
| Height | 204mm |
| Minimum Operating Temperature | 0°C |
| RS422 Interface | Yes |
| CAN Interface | Yes |
| Dimensions | 381 x 142 x 204mm |
| RS232 Interface | Yes |
| Input Capacitance | 8 pF |
| Input Impedance | 1 (Analogue) MΩ, 100 (Digital) kΩ |
| Model Number p | MSOX3034T |
| Weight | 3.9kg |
