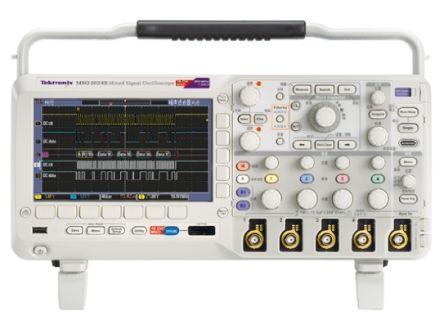

Tektronix, MSO2024B Mixed Signal Oscilloscope, 4 Analogue. Ch., 16 Digital. Ch., 200MHz [MSO2024B]; 768-3393
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | MSO2000B |
| Bandwidth | 200MHz |
| Number of Analogue Channels | 4 |
| Number of Digital Channels | 16 |
| Record Length | 1M points/ch |
| Sample Rate Random | 1 G samples/s |
| USB Interface | Yes |
| Vertical Resolution | 1 (Digital) bit, 8 (Analogue) bit |
| Minimum Time Base | 2ns/div |
| Maximum Time Base | 100s/div |
| Minimum Vertical Sensitivity | 2mV/div |
| Maximum Vertical Sensitivity | 5V/div |
| Model Number p | MSO2024 |
| Weight | 3.6kg |
| Safety Category Level | CAT II |
| Safety Category Voltage | 300V |
| Safety Category | CAT II 300 V |
| Rise Time | 2.1ns |
| Display Type | Colour |
| Maximum Operating Temperature | +50°C |
| Power Source | Mains |
| Width | 134mm |
| Length | 377mm |
| Screen Size | 7in |
| Input Capacitance | 11.5 pF |
| Dimensions | 377 x 134 x 180mm |
| Minimum Operating Temperature | 0°C |
| Height | 180mm |
| Input Impedance | 1 (Analogue) MΩ, 101 (Digital) kΩ |
