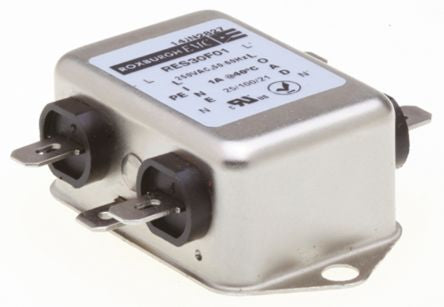

Roxburgh EMC RES30 Series 1A 250 V ac DC → 60Hz Chassis Mount RFI Filter, with Fast-On Terminals [RES30F01]; 806-8158
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 1A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Fast-On |
| Series | RES30 |
| Operating Frequency | DC → 60Hz |
| Length | 62mm |
| Depth | 34.3mm |
| Height | 22mm |
| Capacitance | 4.4 nF, 440 nF |
| Dimensions | 62 x 34.3 x 22mm |
| Inductance | 20 mH |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.34 mA |
| Maximum Operating Temperature | +85°C |
| Resistance | 1MΩ |
| Standards Met | CSA 22.2 No. 8, UL 1283 |
