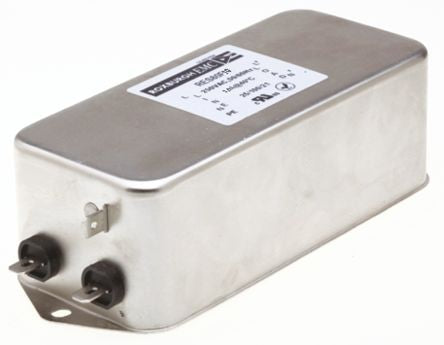

Roxburgh EMC RES80 Series 10A 250 V ac DC → 400Hz Chassis Mount RFI Filter, with Fast-On Terminals, Single Phase [RES80F10]; 806-8225
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 10A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Fast-On |
| Number of Phases | 1 |
| Series | RES80 |
| Number of Stages | Multi Stage |
| Operating Frequency | DC → 400Hz |
| Length | 156mm |
| Depth | 57.5mm |
| Capacitance | 2µF |
| Height | 45.4mm |
| Dimensions | 156 x 57.5 x 45.4mm |
| Inductance | 4.56 mH |
| Leakage Current | 0.73 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 220kΩ |
| Standards Met | CSA 22.2 No. 8, UL 1283 |
