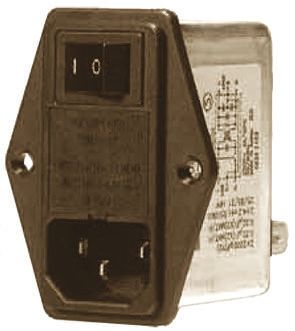

Roxburgh EMC RIS Series 2A 250 V ac/dc Screw Mount RFI Filter, with Tab Terminals, Single Phase [RIS0222H2]; 672-7076
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 2A |
| Maximum Voltage Rating | 250 V ac/dc |
| Mounting Type | Screw Mount |
| Termination Style | Tab |
| Number of Phases | 1 |
| Series | RIS |
| Length | 49.5mm |
| Depth | 57.8mm |
| Height | 65mm |
| Capacitance | 220nF |
| Inductance | 10.5 mH |
| Dimensions | 49.5 x 57.8 x 65mm |
| Leakage Current | 0.35 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +85°C |
| Resistance | 510kΩ |
| Standards Met | EN 60950, UL 1283 |
