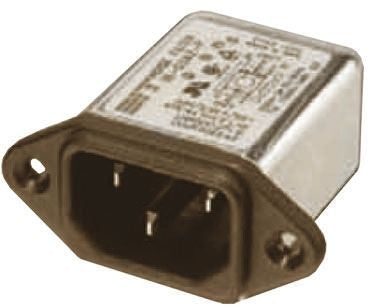

Roxburgh EMC RIX Series 1A 250 V ac/dc RFI Filter, with Pin Terminals, Single Phase [RIX0142P]; 672-7054
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 1A |
| Maximum Voltage Rating | 250 V ac/dc |
| Termination Style | Pin |
| Number of Phases | 1 |
| Series | RIX |
| Length | 50mm |
| Depth | 41.5mm |
| Height | 29.6mm |
| Inductance | 6 mH, 18.3 μH |
| Dimensions | 50 x 41.5 x 29.6mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.35 mA |
| Maximum Operating Temperature | +85°C |
| Resistance | 300mΩ |
| Standards Met | EN 60950, UL 1283 |
