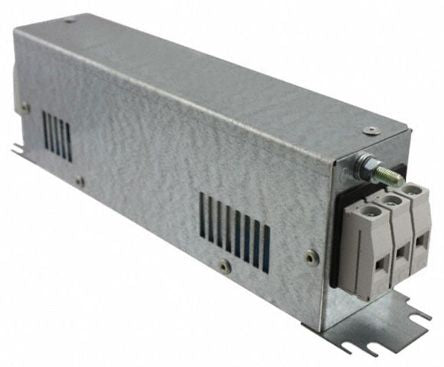

Schurter FMAC ECO Series 36A 480 V ac 60Hz Flange Mount RFI Filter, with Screw Terminals [FMAC-091D-3610]; 708-5673
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 36A |
| Maximum Voltage Rating | 480 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Screw |
| Number of Stages | Single Stage |
| Series | FMAC ECO |
| Operating Frequency | 60Hz |
| Length | 58mm |
| Depth | 265mm |
| Capacitance | 2.2µF |
| Height | 90mm |
| Dimensions | 58 x 265 x 90mm |
| Inductance | 570 μH |
| Leakage Current | 8.9 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 2.5mΩ |
| Power Loss | 10W |
