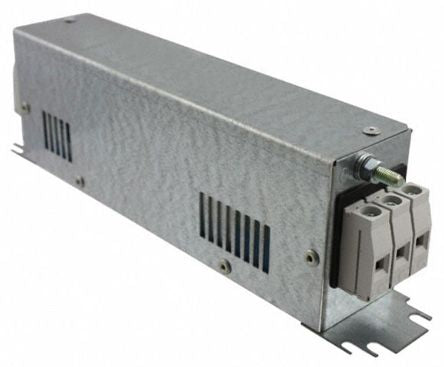

Schurter FMAC ECO Series 80A 480 V ac 60Hz Flange Mount RFI Filter, with Screw Terminals [FMAC-091T-8010]; 708-5698
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 80A |
| Maximum Voltage Rating | 480 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Screw |
| Number of Stages | Single Stage |
| Series | FMAC ECO |
| Operating Frequency | 60Hz |
| Length | 80mm |
| Depth | 320mm |
| Height | 135mm |
| Capacitance | 4.7µF |
| Dimensions | 80 x 320 x 135mm |
| Inductance | 550 μH |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 11.1 mA |
| Maximum Operating Temperature | +100°C |
| Resistance | 1.1mΩ |
| Power Loss | 22W |
