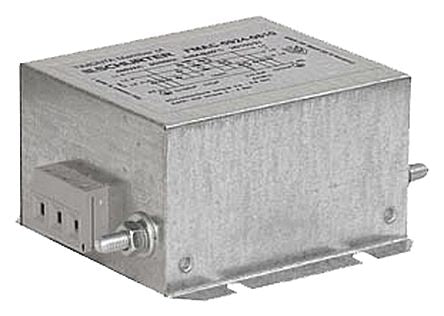

Schurter FMAC Series 36A 480 V ac 60Hz Chassis Mount RFI Filter, with Screw Terminals [FMAC-0934-3610]; 447-317
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 36A |
| Maximum Voltage Rating | 480 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Screw |
| Number of Stages | Single Stage |
| Series | FMAC |
| Operating Frequency | 60Hz |
| Length | 151mm |
| Depth | 250mm |
| Height | 66mm |
| Dimensions | 151 x 250 x 66mm |
| Leakage Current | 8.6 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 3.32mΩ |
| Standards Met | IEC 60068-1, IEC 61140, UL 94V-0 |
