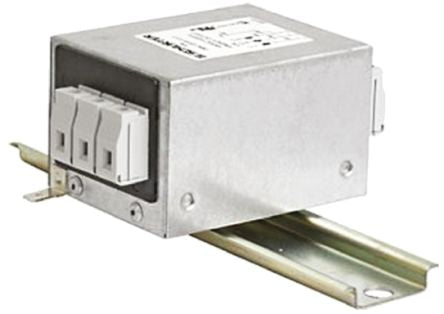

Schurter FMAC RAIL Series 6A 480 V ac 50 → 60Hz DIN Rail RFI Filter, with Screw Terminals [FMAC-3RYB-0610]; 782-4143
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 6A |
| Maximum Voltage Rating | 480 V ac |
| Mounting Type | DIN Rail |
| Termination Style | Screw |
| Number of Stages | Single Stage |
| Series | FMAC RAIL |
| Operating Frequency | 50 → 60Hz |
| Length | 102mm |
| Depth | 61mm |
| Height | 48mm |
| Capacitance | 4.7 nF, 100 nF |
| Inductance | 2 mH |
| Dimensions | 102 x 61 x 48mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.02 mA |
| Maximum Operating Temperature | +100°C |
| Resistance | 21mΩ |
| Power Loss | 2.3W |
