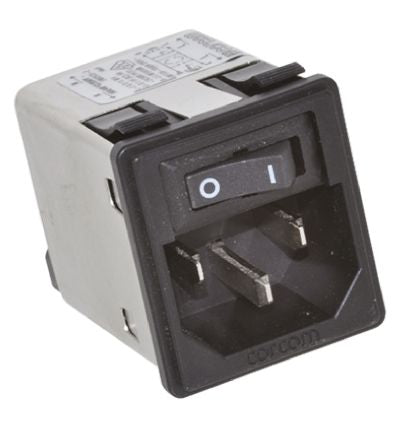

TE Connectivity SB Series 20A 250 V ac 50 → 60Hz Chassis Mount RFI Filter, with Spade Terminals, Single Phase [20ESB1]; 782-6694
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 20A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Spade |
| Number of Phases | 1 |
| Number of Stages | Single Stage |
| Series | SB |
| Operating Frequency | 50 → 60Hz |
| Length | 97.79mm |
| Depth | 52.58mm |
| Capacitance | 1.0014 μF, 5.6 nF |
| Height | 33.27mm |
| Dimensions | 97.79 x 52.58 x 33.27mm |
| Inductance | 900 μH |
| Minimum Operating Temperature | -10°C |
| Leakage Current | 0.36 mA |
| Maximum Operating Temperature | +40°C |
| Standards Met | UL 1283 |
