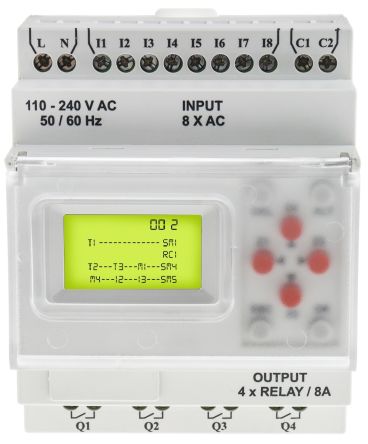

RS PRO Logic Module, 110 → 240 V ac, 8 x Input, 4 x Output With Display; 917-6361
Mã kho: 9176361
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 110 → 240 V ac |
| Output Type | Digital, Relay |
| Number of Outputs | 4 |
| Input Type | Digital |
| Number of Inputs | 8 |
| Mounting Type | DIN Rail |
| Communication Port Type | Serial |
| Width | 72mm |
| Display Included | Yes |
| Length | 90mm |
| Depth | 65mm |
| Dimensions | 72 x 90 x 65 mm |
| Termination Type | Screw |
| Programming Interface | Computer |
| Programming Language Used | Ladder Programming |
| Program Capacity | 250 lines |
| Number of Communication Ports | 1 |
| Network Type | ModBus |
| Module Type | Logic Control Module |
| Minimum Operating Temperature | -10°C |
| Output Current | 0.333333333333333 |
| Maximum Operating Temperature | +55°C |
| Application | Commercial, Industrial |
| Standards Met | CE, CULus Listed, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 61000-3-2, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-29, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6 |
