Panduit Signs, Labels & Identification, [R100X150V1C]; PAH470

Name: Panduit Signs, Labels & Identification, [R100X150V1C]; PAH470
Brand: Panduit
SKU: PAH470
Price: 2246380.0 VND
Availability: InStock

Mã kho: PAH470

Mã nhà sản xuất: R100X150V1C

Tên nhà sản xuất: Panduit

2.246.380₫ - 2.246.380₫

2.246.380₫

2.246.380₫ - 2.246.380₫

2.246.380₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Signs Labels Identification / Labels Markers Printers / Portable Printer Labels Cassettes: Panduit R100X150V1C

MÔ TẢ SẢN PHẨM

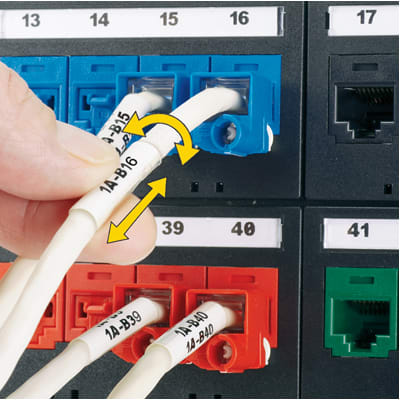

The R100X150V1C Turn-Tell Label Cassette includes both label material and ribbon for easy changeover. The label design allows rotation for visibility from any angle - reposition on the wire/cable to align legends and improve aesthetics. Can be easily installed on existing terminated wires and assemb

_THÔNG SỐ KỸ THUẬT:

Note	For use with LS8E and LS8EQ printers
Product Type	Turn-Tell Label
Sub Brand	P1™
Cable Type	Category 5e/6/6e UTP and Category 5e FTP
Color	White
Compatible Wire Gauge (AWG)	10-6
Material	Vinyl
Number of Labels per Cassette	100
Standards Met	RoHS Compliant
Label Length (In.)	1.5
Label Length (mm)	38.1
Label Width (In.)	1
Label Width (mm)	25.4
Label Height (In.)	1.5
Label Height (mm)	38.1
Maximum Cable Diameter (In.)	0.28
Maximum Cable Diameter (mm)	7.1
Minimum Cable Diameter (In.)	0.22
Minimum Cable Diameter (mm)	5.6
Minimum Operating Temperature (°C)	-40
Minimum Operating Temperature (°F)	-40
Print-On Area Height (In.)	0.5
Print-On Area Height (mm)	12.7
Maximum Operating Temperature (°C)	93
Maximum Operating Temperature (°F)	200
Overall Width (In.)	1
Overall Width (mm)	25.4
Label Application	Cable & Wire Marking
