Panduit Labels, Markers & Printers, [S100X400VAC]; PAF645

Name: Panduit Labels, Markers & Printers, [S100X400VAC]; PAF645
Brand: Panduit
SKU: PAF645
Price: 1279100.0 VND
Availability: InStock

Mã kho: PAF645

Mã nhà sản xuất: S100X400VAC

Tên nhà sản xuất: Panduit

1.279.100₫ - 1.279.100₫

1.279.100₫

1.279.100₫ - 1.279.100₫

1.279.100₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Signs Labels Identification / Labels Markers Printers / Portable Printer Labels Cassettes: Panduit S100X400VAC

MÔ TẢ SẢN PHẨM

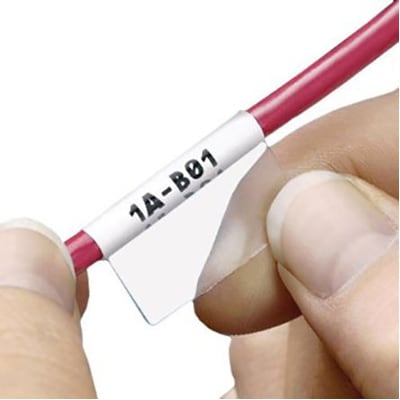

The S100X400VAC Thermal Transfer Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. The cassette contains an integrated memory device for automatic formatting, recall of

_THÔNG SỐ KỸ THUẬT:

Note	For use with LS8E and LS8EQ printers
Product Type	Self-Laminating Label
Sub Brand	P1™
Color	White
Compatible Wire Gauge (AWG)	2-1
Material	Vinyl
Number of Labels per Cassette	75
Standards Met	RoHS Complaint
Minimum Cable Diameter (In.)	0.32
Minimum Cable Diameter (mm)	8.1
Maximum Cable Diameter (In.)	0.95
Maximum Cable Diameter (mm)	24.3
Label Height (In.)	4
Label Height (mm)	101.6
Label Width (In.)	1
Label Width (mm)	25.4
Minimum Operating Temperature (°C)	-46
Minimum Operating Temperature (°F)	-50
Maximum Operating Temperature (°C)	107
Maximum Operating Temperature (°F)	225
Print-On Area Height (In.)	1
Print-On Area Height (mm)	25.4
Overall Width (In.)	1
Overall Width (mm)	25.4
Label Application	Cable & Wire Marking
