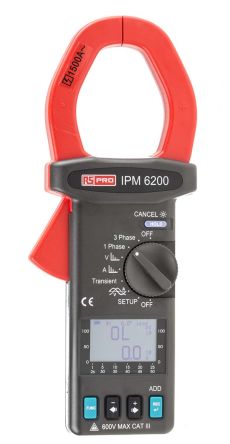

RS PRO IPM6200 Power Quality Analyser; 123-2207
Mã kho: 1232207
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Absolute Maximum Current Measurement | 1500A |
| Absolute Maximum Power Measurement | 9999kW |
| Number of Phases | 3 |
| Maximum Voltage | 600V |
| Best Voltage Measurement Accuracy | ±0.5 % ± 5 Digits |
| Best Current Measurement Accuracy | ±0.5 % ± 5 Digits |
| Display Type | LCD |
| Measurement Type | AC Current, AC Voltage, AC Wattage, Crest Factor, Harmonic, Phase Angle, Power Factor, Total Harmonic Distortion |
| Interface Type | RS232C |
| Power Source | Battery |
| Battery Type | 1.5 V |
| Height | 210mm |
| Dimensions | 62 x 35.6 x 210mm |
| Width | 35.6mm |
| Length | 62mm |
| Model Number p | IPM6200 |
| Weight | 640g |
| Minimum Operating Temperature | -10°C |
| Maximum Frequency | 50 Hz, 60 Hz |
| Maximum Operating Temperature | +50°C |
