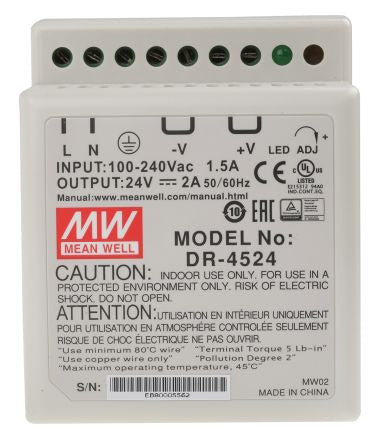

Mean Well, DR DIN Rail Panel Mount Power Supply, 24V dc Output Voltage, 2A Output Current [DR-4524]; 282-473
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 85 → 264V ac |
| Output Voltage | 24 V dc |
| Output Current | 0.0833333333333333 |
| Power Rating | 45W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 78mm |
| Width | 93mm |
| Standards Met | RoHS Compliant, TUV EN 60950-1, UL 508 |
| Special Features | Overvoltage and Short Circuit Protection |
| Load Regulation | ±1% |
| Output Voltage Adjustment Range | 21.6 → 26.4V |
| Series | DR |
| Maximum Temperature | +50°C |
| Ripple And Noise | 480mV Pk-Pk |
| Mounting Type | DIN Rail Mount |
| Minimum Temperature | -10°C |
| MTBF | 364600h |
| Depth | 67mm |
