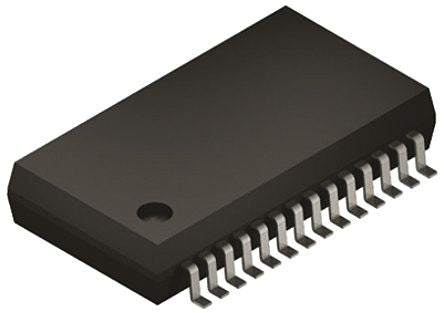

MCU&DSC 16-Bit 32K Flash PWM SSOP28 [DSPIC33EP32MC202-I/SS]; 825-1032
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency | 140MHz |
| Data Bus Width | 16bit |
| RAM Size | 4 kB |
| Instruction Set Architecture | DSP |
| Program Memory Size | 32 kB |
| Program Memory Type | Flash |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Pin Count | 28 |
| Typical Operating Supply Voltage | 3 → 3.6 V |
| Number of UART Channels | 2 |
| Maximum Operating Temperature | +85 °C |
| Height | 1.85mm |
| Number of I2C Channels | 2 |
| PWM Channels | 6 |
| Number of PWM Units | 4 |
| Number of ADC Units | 1 |
| Number of Timers | 12 |
| ADC Channels | 6 |
| ADC Resolution | 10 bit, 12 bit |
| Width | 5.6mm |
| ADCs | 1(6 x 10 bit)/1(6 x 12 bit) |
| PWM Resolution | 16bit |
| Number of SPI Channels | 2 |
| Dimensions | 10.5 x 5.6 x 1.85mm |
| Length | 10.5mm |
| Pulse Width Modulation | 4 x 16 bit, 6 (Motor Control) |
| Minimum Operating Temperature | -40 °C |
| Timers | 2 x 32 bit, 5 x 16 bit |
| Timer Resolution | 16 bit, 32 bit |
