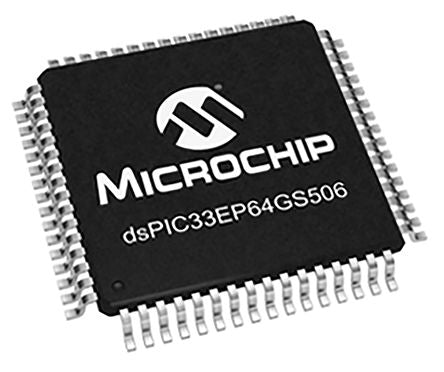

DSPIC33EP64GS506-I/PT Microchip, 16bit DSP 1MHz 64 kB EEPROM, SRAM 64-Pin TQFP [DSPIC33EP64GS506-I/PT]; 893-8329
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency | 1MHz |
| Device Million Instructions per Second | 70MIPS |
| Data Bus Width | 16bit |
| RAM Size | 8 kB |
| Instruction Set Architecture | Code Efficient, MCU, Modified Harvard |
| Program Memory Size | 64 kB |
| Program Memory Type | EEPROM, SRAM |
| Numeric and Arithmetic Format | MAC |
| Mounting Type | Surface Mount |
| Package Type | TQFP |
| Pin Count | 64 |
| Typical Operating Supply Voltage | 3 → 3.6 V |
| Number of UART Channels | 2 |
| Number of PCI Channels | 1 |
| PWM Channels | 2 |
| ADC Resolution | 12bit |
| Timer Resolution | 16bit |
| Timers | 5 x 16 bit |
| Minimum Operating Temperature | -40 °C |
| Number of SPI Channels | 2 |
| Dimensions | 10 x 10 x 1.05mm |
| Length | 10mm |
| Pulse Width Modulation | 5 x 2 |
| Maximum Operating Temperature | +85 °C |
| Height | 1.05mm |
| Number of I2C Channels | 2 |
| Number of ADC Units | 5, 22 |
| Number of LIN Channels | 2 |
| Number of PWM Units | 5 |
| ADCs | 5 x 12 bit, 22 x 12 bit |
| Width | 10mm |
| Number of Timers | 5 |
| USB Channels | 1 x Device |
